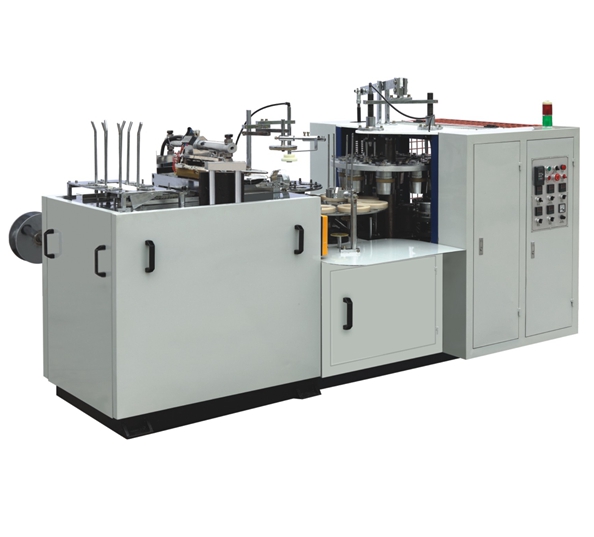

OC-Q70 Open Cam Paper Cup Machine
OC-Q70 is the High-Speed Paper Cup Machine is the Cost-Effective machine with high reliability & durability.
Product Code - OC-Q70
Brand - Prasanna Machines
CompareOC-Q70 is the High-Speed Paper Cup Machine is the Cost-Effective machine with high reliability & durability. This machine is fitted with Open Cam Drive System which enhances the speed of the machine. This Machine adopts the automatic lubrication to both Open Cam & Few Shafts which will improve the life time of the machine. This machine runs comfortably at a stable speed of around 55-70 Cups Per minute.
| Cup Size | Can Customize between 30 ml to 360 ml in Different Bottom Diameter from 43 mm to 65mm |
| Speed (Number of Cups Produced Per Minute) | 55-70 |
| Material Thickness (GSM) | 140-350 gsm |
| Paper Specification | Cup Stock Single Side PE/PLA Coated |
| Power Range | Three Phase 380V 50Hz |
| Total Power | 3.5 KW |
| Weight | 1500 Kg |
| Machine Dimension | 2800L*1400W*1700H mm |
| Air Pressure Requirements | NIL |
