PSM-Q50 Paper Straw Making Machine

PSM-Q50 Paper Straw Making Machine

Paper Straw machine includes paper unwinding, gluing, twisting, cutting, conveying and collecting units equipped with multi round knives to cut off paper drinking straw online.


Product Code - PSM-Q50

Brand - Prasanna Machines

Compare

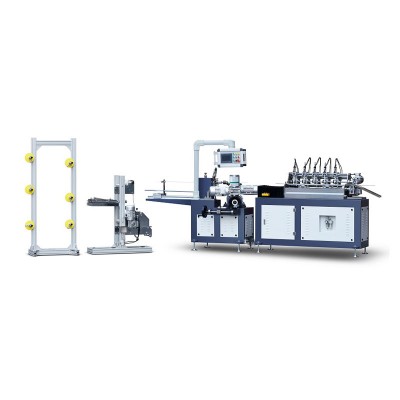

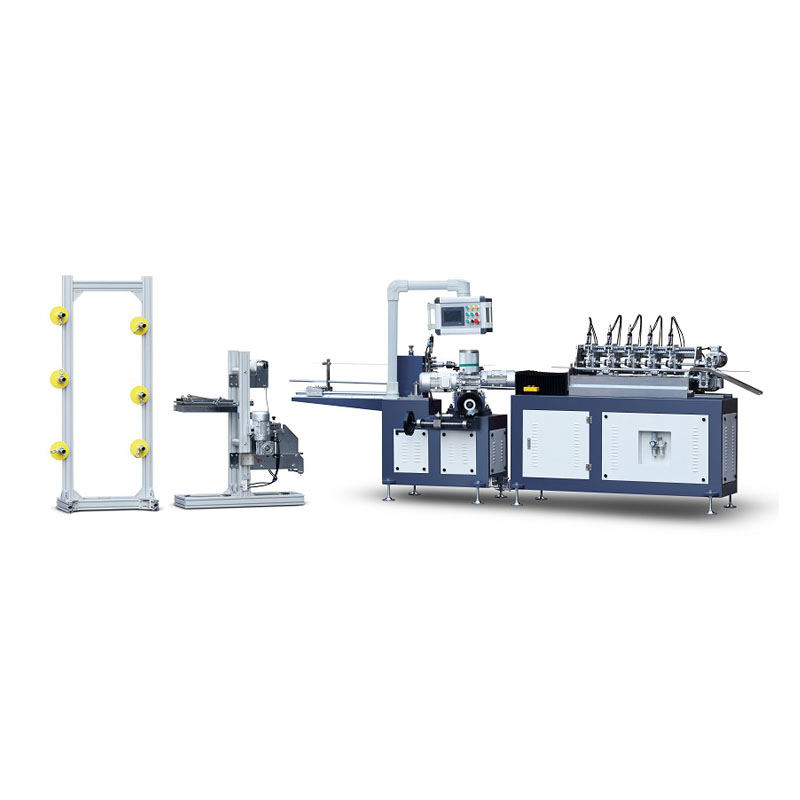

PSM-Q50 High Speed Paper Straw machine includes paper unwinding, gluing, twisting, cutting, conveying and collecting units equipped with multi round knives to cut off paper drinking straw online. It is suitable for making 5-12 mm diameter paper drinking straw. This machine adopts PLC Controller with Human Machine Interface which makes it comfortable for machine operation.

Paper Layer3 Layer
Straw Inner Diameter5-12 mm
Straw Wall Thickness0.3-2 mm
Cutting Length100-800 mm
Speed0-50 metres/min
Winding Head2
Cutter5 Knife
Gluing WaySingle/Double Sides
Air Pressure Requirement0.6 MPa
Weight1300 Kg
PowerThree Phase 380V 50Hz, 6.5 KW
Machine Dimension5600L*1600W*1750H mm
Working Space11000L*6000W*2000H mm
