OC-Q90 High Speed Paper Cup Machine
The Complete machine is designed to operate with Helical & Spur Gears for both Rotary Movement & Up and Down Motion which makes the machine to operate with more perfection.
Product Code - OC-Q90
Brand - Prasanna Machines
CompareOC-Q90 machine is a Newly Designed Perfect Open Cam Paper Cup Machine which can produce different sizes of paper cups with a series of continuous process which includes automatic paper feeding, Side Sealing, Transferring Paper Cone with Magical Fibre Hand, Bottom Punching, Bottom Folding, Bottom Knurling, Top Curling & Cup Discharging. The Complete Paper Cup Making Process is Controlled by PLC which enhances the machine performance, safety and stability. The Complete machine is designed to operate with Helical & Spur Gears for both Rotary Movement & Up and Down Motion which makes the machine to operate with more perfection. Automatic Lubrication system will enhance the life span of machine by reducing the abrasion of machine parts.
Highlights
- Open Cam Mechanism
- Speed reducer Integrated along with Main motor
- PLC With Touch Screen Control System
- Remote Control for Operating machine
- Auto Lubrication system
- Gear Driven Mechanism instead of conventional chains

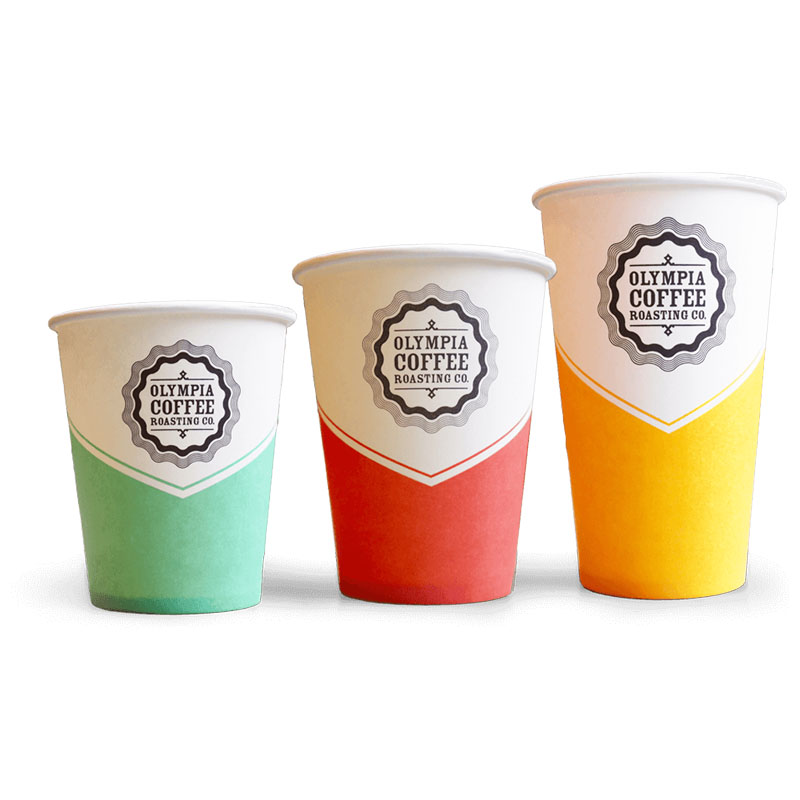

| Cup Size | Can Customize between 30 ml to 360 ml in Different Bottom Diameter from 43 mm to 65mm |
| Speed (Number of Cups Produced Per Minute) | 80-100 |
| Material Thickness (GSM) | 140-400 gsm |
| Paper Specification | Cup Stock Single Side PE/PLA Coated |
| Power Range | Three Phase 380V 50Hz |
| Total Power | 8 KW |
| Weight | 2800 Kg |
| Machine Dimension | 2250L*1500W*1900H mm |
| Air Pressure Requirements | 0.6 MPa, 0.3-0.5 m3/min |
