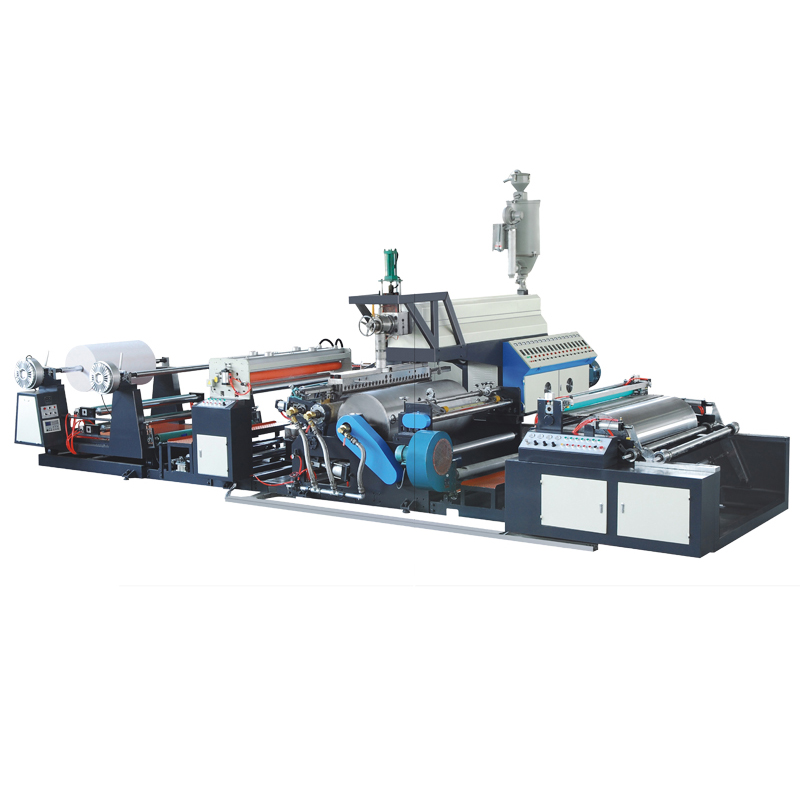

PECM-1300 Poly Ethylene Coating Machine
PECM-1300 Coating machine is launched for compounding Paper & Polyethylene film into double layer or multi layer product, which is used for manufacturing Paper Cup Blanks.
Product Code - PECM-1300
Brand - Prasanna Machines
ComparePECM-1300 Coating machine is launched & invented for compounding fluid paper & polyethylene film into double layer or multi layer product, which is used for manufacturing Paper Cup Blanks. The finished Material has fine Sealing Capability which seems to be the vital character of Paper Cup Raw Material.
| Applicable coating film resin | Coating grade LDPE |
| Suitable Paper Weight | 35-425 gsm |
| Max Width of Coating Film | 1200 mm |
| Max Working Speed | 100-150 metres/min |
| Thickness of Coating Film | 0.01-0.11 mm |
| Inaccuracy Thickness of Coating Film | ±6 % |
| Setting Range of Auto-Tension | 10-200 Kg/Entire width (Constant Tension) |
| Max Extrusion | 260 Kg/Hr |
| Compound Cooling Roller Diameter | 510×1300 mm (Can Customize) |
| Total Power | Three Phase 380V 50Hz, 110 KW |
| Max Rewinding Diameter | 1300 mm |
| Inside Diameter of Base Material | 76 mm |
| Machine Total Weight | 15000 Kg |
| Overall Dimension (L*W*H) | 9600L*8000W*3250H mm |
