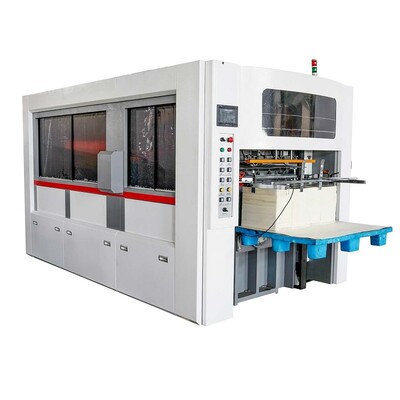

PY-950 High Speed Roll Die Cutting Machine

PY-950 High Speed Roll Die Cutting Machine

PY-950 Automatic Die Cutting Machine is the ideal & Professional machine to process Jumbo Roll Material to Punched Blanks with more Speed by cost effective wooden dies.


Product Code - PY-950

Brand - Prasanna Machines

Compare

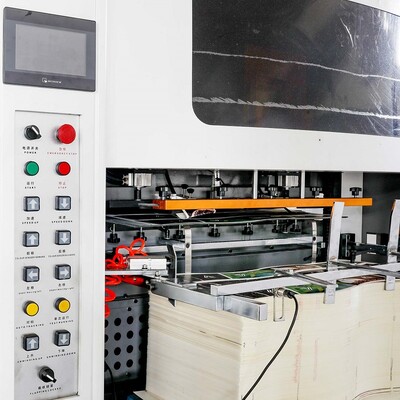

PY-950 Automatic Die Cutting Machine is the ideal & Professional machine to process Jumbo Roll Material to Punched Blanks with more Speed by cost effective wooden dies. This is an ideal equipment to manufacture Paper Cup Raw Material in large Quantity. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.

Maximum Paper Cutting Area 950*540 mm
Rates Cutting Speed 90-140 Strokes/Minute
Cutting Precision ±0.10 mm
Suitable Paper Weight 100-800 gsm
Air Pressure Consumption 0.5-0.7 MPa
Maximum Cutting Pressure 250 Ton
Total Power 11 KW
Weight 6500 Kg
Dimensions 4200L*2100W*1850H mm
