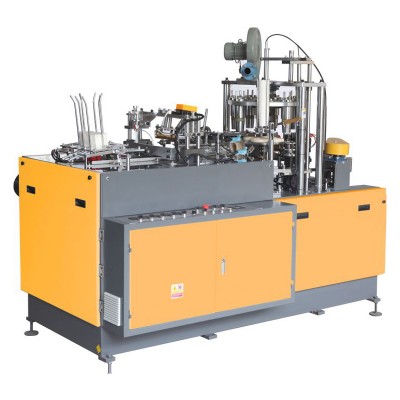

OC-Q80 High Speed Paper Cup Macking Machine
The Complete machine is designed to operate with Helical & Spur Gears for both Rotary Movement & Up and Down Motion which makes the machine to operate with more perfection.
Product Code - OC-Q80
Brand - Prasanna Machines
CompareOC-Q80 machine is a Newly Designed Perfect Open Cam Paper Cup Machine which can produce different sizes of paper cups with a series of continuous process which includes automatic paper feeding, Side sealing, Transferring Paper cone with Magical Fibre hand, Bottom Punching, Bottom Folding, Bottom Knurling, Top Curling & Cup Discharging. The Complete machine is designed to operate with Helical & Spur Hears for Rotary Movement & Up and Down Motion which makes the machine to operate with more perfection. Automatic Lubrication system will enhance the life span of machine by reducing the abrasion of machine parts.
| Cup Size | Can Customize between 30 ml to 360 ml in Different Bottom Diameter from 43 mm to 65mm |
| Speed (Number of Cups Produced Per Minute) | 80-100 |
| Material Thickness (GSM) | 140-400 GSM |
| Paper Specification | Cup Stock Single Side PE/PLA Coated |
| Power Range | Three Phase 380V 50Hz |
| Total Power | 4.5 KW |
| Weight | 2500 KG |
| Machine Dimension | 2200L*1000W*1720H mm |
